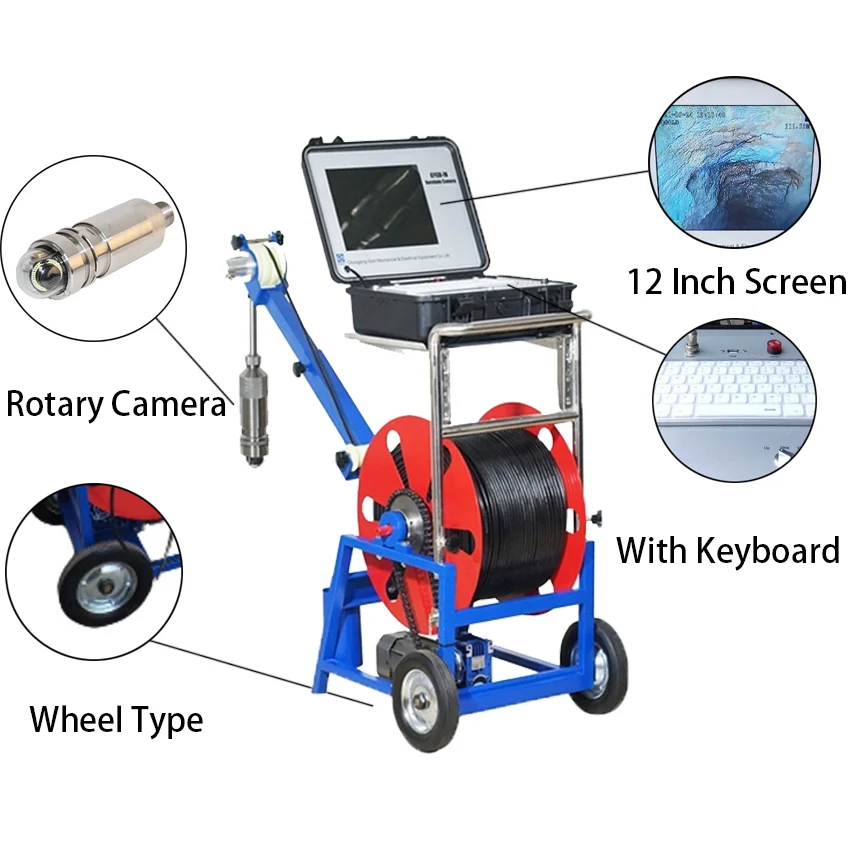

150M 200M 300M 500M Borehole Downhole Water Well Inspection Camera Video Recording Camera

Name: 150M 200M 300M 500M Borehole Downhole Water Well Inspection Camera Video Recording Camera
Brand: GOLD
Price: 1 USD

Best 150M 200M 300M 500M Borehole Downhole Water Well Inspection Camera Video Recording Camera wholesale

Brand Name : GOLD

Model Number : GYGD-IV

Certification : CE, ISO

Place of Origin : chongqing,China

MOQ : 1 set

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1 set per 5 days

Delivery Time : 5-8 work days

Packaging Details : wooden case

Product name : Borehole Downhole Underground Water Well Inspection Camera

Resolution : HD

Feature : 360 Degree Rotation

Certificate : CE ISO

Application : Wellbore water well video inspection

Camera Type : Video Deep Well Inspection Camera

Camera Used for : Borehole, Wellbore, Water Well Inspection

Waterproof : IP68

LED : high brightness LED

Contact Now

150M 200M 300M 500M Borehole Downhole Water Well Inspection Camera Video Recording Camera

Borehole well camera for wellbore inspection is professional camera for water well, oil well, ocean, pipe inspection, well maintenance and repair, drilling inspection and so on. The inspection depth can be 0-2000M.

150M 200M 300M 500M Borehole Downhole Water Well Inspection Camera Video Recording Camera

innovative image capturing capabilities
inspecting well existing conditions,
preventative maintenance and quality check inspections,
casing damage exploration,
gas and water entries,
monitoring of corrosion and erosion,
perforation inspections,
tubing problems identification and many other
They are high pressure and watertight inspection devices,
featuring innovative image sensors,
high-output LED illumination,
durable insertion cable and intuitive interface,
capable of conducting inspections in wells up to 2000 m deep

150M 200M 300M 500M Borehole Downhole Water Well Inspection Camera Video Recording Camera

TV system :	PAL / NTSC optional
Camera size:	75mm(diameter) * 260mm(length)
Camera angle:	360 degree
Image sensor:	1/3 CCD
Resolution:	850TVL
Sensitivity:	0.1LUX
Pixel:	1024*768
Camera housing material:	Stainless Steel
Grade:	military
Display: 8 inch LCD display	8 inch LCD display or 12 inch LCD display
Working temperature:	-15 celsius to + 65celsius
Power:	AC 220V
Frame rate:	25 frame / second
Light source:	3W and 4.5W LED lights
Best inspection diameter:	90mm-400mm
Cable optional	100-2000m watertightness
Downhole pulley	Yes

150M 200M 300M 500M Borehole Downhole Water Well Inspection Camera Video Recording Camera

Product Tags:

200M Borehole Inspection Camera

300M Borehole Inspection Camera

500M Borehole Inspection Camera

150M 200M 300M 500M Borehole Downhole Water Well Inspection Camera Video Recording Camera Images
